What is cable management in PV systems?
Professional cable management is a crucial factor in every photovoltaic installation on a tiled roof – not only for the longevity of the system, but also for occupational safety and compliance with all relevant regulations. Electricians and installers face a clear task: solar cables must be safely routed through the roof and reliably secured on the roof surface. With the right system accessories, you can do both efficiently and permanently.
In this article, you will learn how to optimally use roof penetrations and cable clips, what to look for when choosing them, and how to avoid typical mistakes from the outset.
Cable management in photovoltaic systems includes all measures that ensure solar cables are organized, protected, and permanently secured. On pitched roofs with tile covering, this involves two essential components: The roof penetration for safe cable entry through the roof tile and The cable clip for proper cable routing on the roof surface.
The NEXCAPE® PV Cable Roof Penetration: Cable Entry Without Compromise
Three sizes for different requirements
The NEXCAPE® PV Cable Roof Penetration is available in three lengths: 105 mm, 125 mm, and 150 mm. The length is chosen to match the roof tile geometry – depending on the overlap depth of the tile, you will need a shorter or longer penetration.
All three variants are designed for PV cables with a diameter of approx. 7.5 mm. At the same time, grounding cables with a cross-section of up to Ø 16 mm can be safely routed – a feature that is particularly relevant for modern PV systems with potential equalization.
Installation directly into the roof tile – without special tools
The special feature of the NEXCAPE® system: The roof penetration is simply hooked into the roof tile. Elaborate dismantling of the tile covering or the use of special tools is not necessary. This saves valuable time on the roof and reduces the risk of injury when working at height.
Another advantage: The MC4 connector is already assembled. You can therefore route the solar cables without first removing the connector and then re-crimping it. This is particularly relevant when the cables are supplied pre-assembled from the factory.
Material: UV-resistant technical plastic
The NEXCAPE® roof penetration is made of UV-resistant technical plastic – designed for continuous use under direct sunlight. All variants are manufactured in black and blend in inconspicuously with the roof surface. Production takes place in Germany.

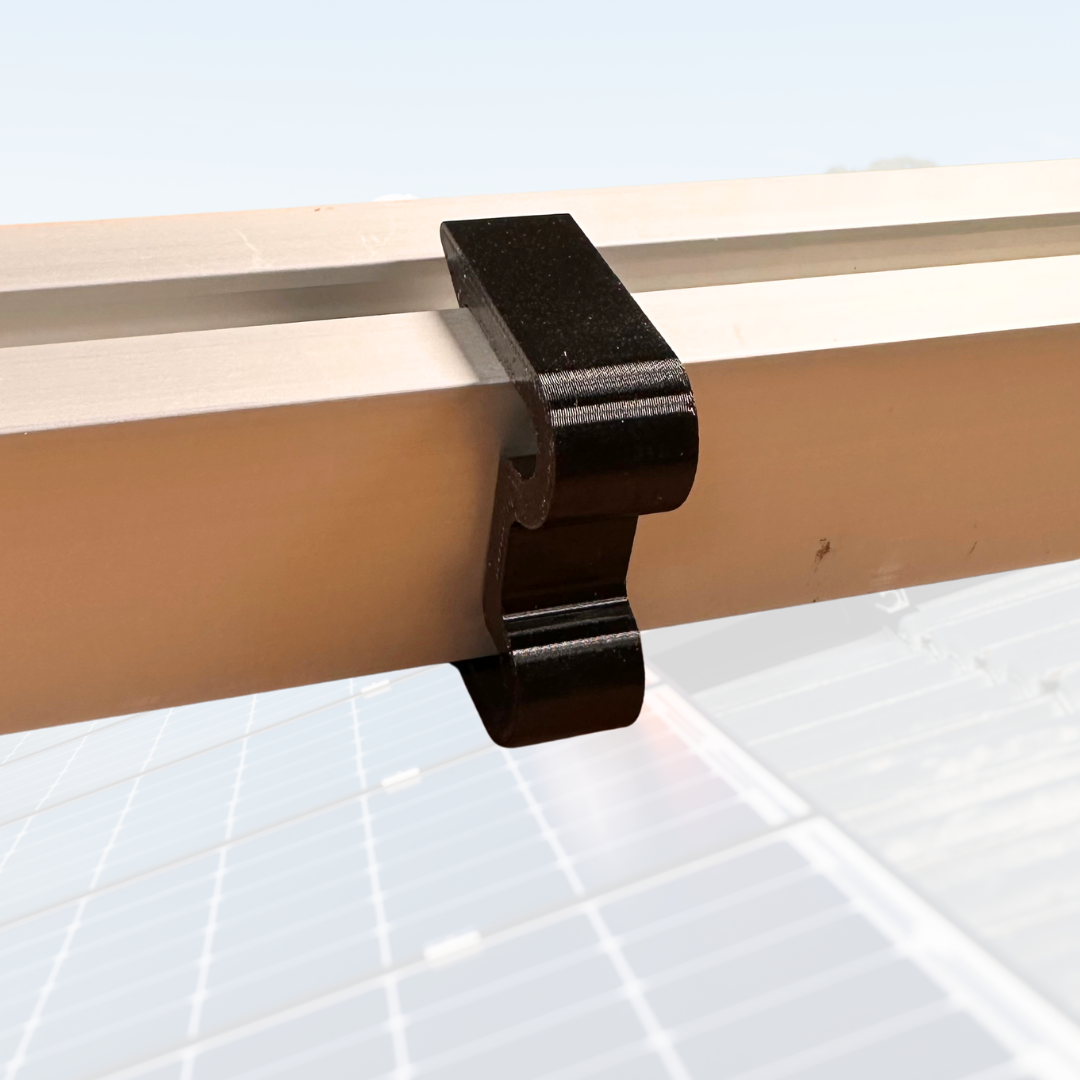

The NEXCAPE® PV/Solar Cable Clip 40×40 mm: Securely Fastening Cables on the Roof
After the cables are safely routed through the roof tile, they must be laid neatly on the roof surface. Loose solar cables can be permanently damaged by wind, mechanical stress, or UV radiation.
The NEXCAPE® PV/Solar Cable Clip 40×40 mm is specially designed for fastening solar cables on tiled roofs. It holds the cables securely in position and prevents movement due to wind load. The combination of roof penetration and cable clip forms a coordinated system – from start to finish.
Typical Mistakes in Cable Management on Tiled Roofs
1. Cables laid too loosely: Cables without sufficient fastening move in the wind – this leads to chafing and insulation damage. Cable clips at regular intervals prevent this.
2. Wrong penetration size chosen: Measure the overlap depth of the tile type before ordering, or choose 125 mm as a universal starting point.
3. Grounding cable not considered: The NEXCAPE® roof penetration supports grounding cables up to Ø 16 mm – plan for these from the outset.
4. No system, but individual solutions: A coordinated system like NEXCAPE® significantly simplifies planning, ordering, and installation.
Cable Management as Part of System Quality
For professional electrical companies, cable management is part of system quality. Well-routed and protected cables reduce consequential damage, facilitate inspections, and document the diligence of the executing company.
Scope of Delivery and Order Quantities
NEXCAPE® products are exclusively available in B2B package sales. The PV Cable Roof Penetration is available in package sizes of 20, 50, 100, 500, and 1,000 pieces. All sizes (105 mm, 125 mm, 150 mm) are available in the variants 2PV, 2PV+PE, 4PV, 4PV+PE, 6PV, and 6PV+PE.
Conclusion: Cable Management with a System
Anyone installing PV systems on tiled roofs needs reliable solutions for cable routing. The NEXCAPE® PV Cable Roof Penetration and the NEXCAPE® PV/Solar Cable Clip 40×40 mm are coordinated and cover both requirements. Easy installation without special tools, the assembled MC4 connector, and suitability for PV cables and grounding cables make the system a practical choice for electrical companies.
Questions about order quantities or technical details? Contact us: Email: support@nexcape.de | Phone: 07054 927999 | Web: www.nexcape.de
