Roof Penetration Without Drilling: The Tool-Free Alternative
When installing PV systems, cable routing through the roof is a critical step. Conventional methods often require drilling through tiles or the roof membrane — with risks to watertightness. NEXCAPE offers a tool-free alternative that eliminates drilling while still delivering professional results.
Why Drilling is Problematic
Every drill hole in a roof tile or underlayment is a potential weak point. Water can penetrate, the tile can break, and long-term watertightness is compromised. Additionally, drilling on the roof takes time — tools must be carried up, drill holes need to be sealed, and a misdrilled tile is lost.
How Tool-Free Installation Works

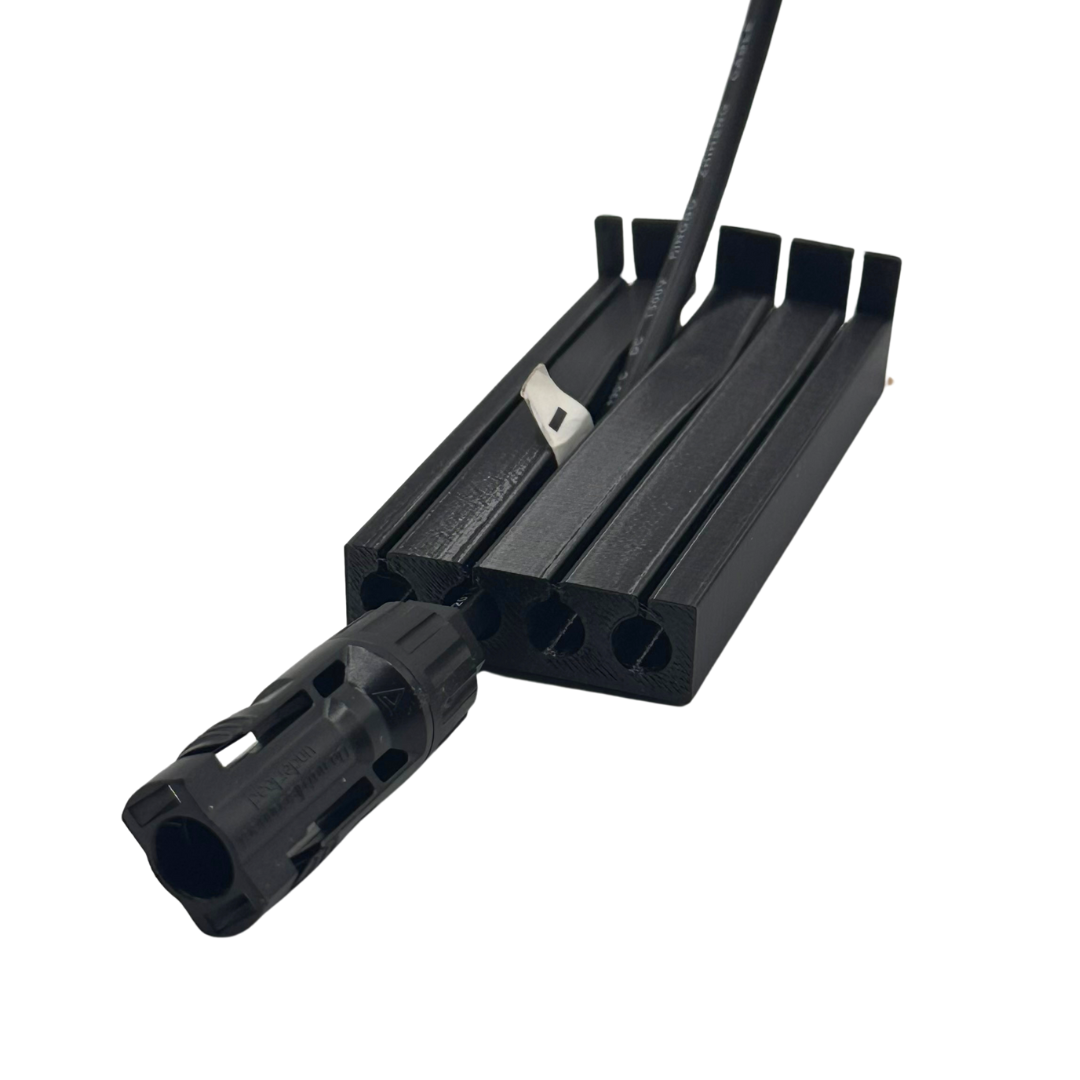

NEXCAPE roof penetrations made of TPU (Thermoplastic Polyurethane) replace the conventional roof tile at the penetration point. Installation is extremely simple:
- Step 1: Remove original tile at the desired location
- Step 2: Thread PV cables through the NEXCAPE penetration
- Step 3: Insert the penetration in place of the original tile
- Step 4: Continue routing cables in the attic space
No tools, no drilling, no sealing with silicone. The MC4 connectors do not need to be disassembled — the openings are large enough to pass the plug connections through.
The Material: TPU in 3D Printing
The penetrations are manufactured using a 3D printing process in Germany. TPU is a highly flexible, UV-resistant material that adapts to various tile profiles. Unlike rigid plastics, TPU does not break and remains elastic even with temperature fluctuations.
Advantages over Conventional Methods
| Feature | Drilling Solution | NEXCAPE Tool-Free |
|---|---|---|
| Tools required | Yes (drill, sealant) | No |
| Installation time | 15-30 min. | 5 min. |
| Tile damaged | Yes | No |
| MC4 disassembly required | Often yes | No |
| Long-term watertightness | Depends on sealant | High due to material |
For Solar Installers and PV Companies
Tool-free installation saves valuable minutes per system on site. For large projects, this adds up significantly. NEXCAPE offers penetrations in variants for 2, 4, or 6 strings (each with and without PE cable opening) and in lengths of 105, 125, and 150 mm. B2B volume discounts apply for orders of 20 pieces or more.
Discover tool-free roof penetrations for your next PV project: Roof penetrations for solar cables (105/125/150 mm)
