Clay Roof Tiles and Roof Bushings: What Matters Most
Clay roof tiles are among the most popular roofing materials in Germany. Their natural surface structure, thermal expansion, and glazed or engobed surface place special demands on roof bushings for solar cables.
Challenge of Material Compatibility
Not every sealing material is compatible with clay tiles. Hard plastics can cause stress cracks during temperature changes. EPDM cuffs lose their sealing effect on rough surfaces. The result: leaks that only become visible after months or years.
Why TPU is the Ideal Solution

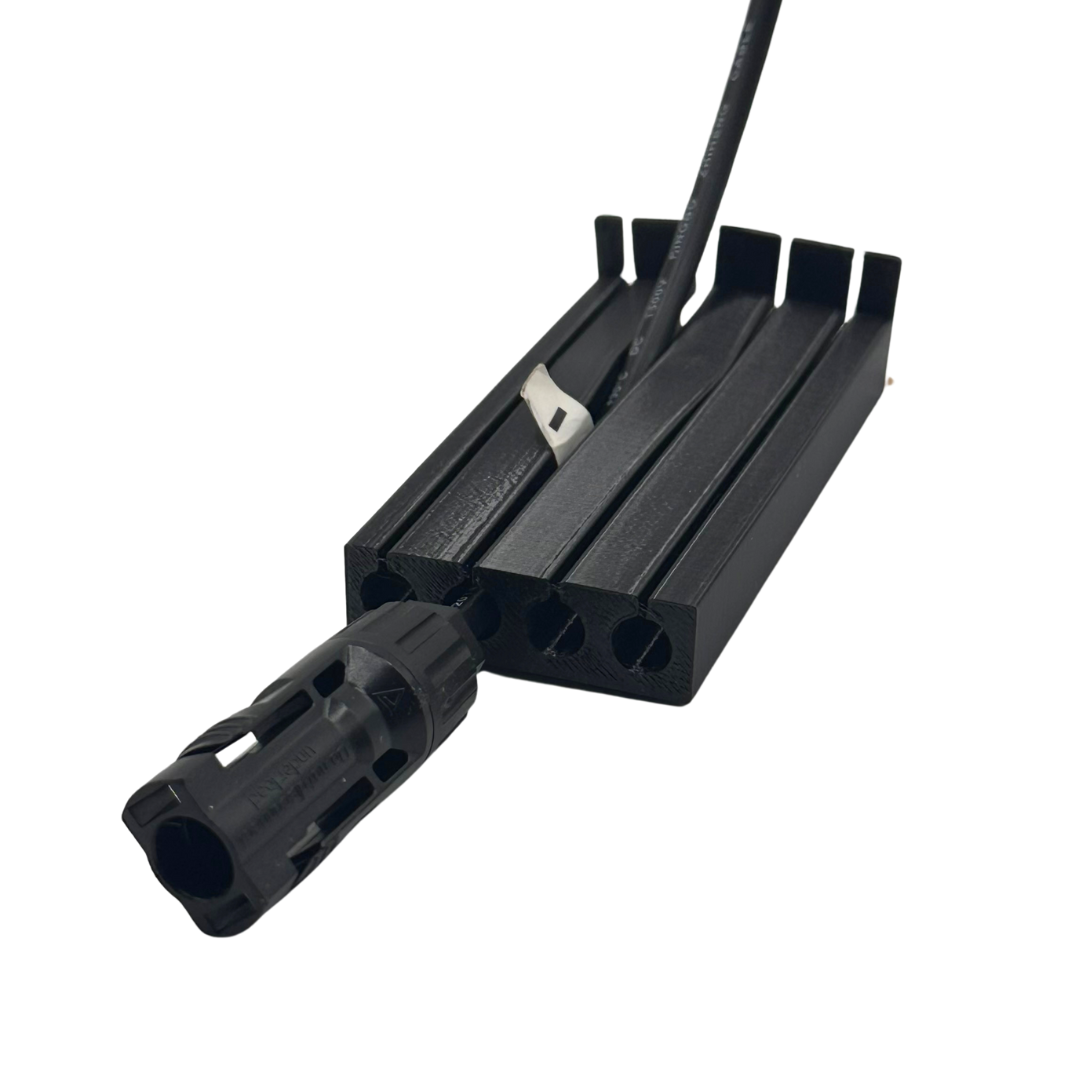

NEXCAPE roof bushings are made of TPU (Thermoplastic Polyurethane). This material combines crucial advantages for use on clay roof tiles:
- High Elasticity: TPU adapts to the tile contour without hardening.
- UV Resistance: No material degradation due to sun exposure.
- Chemical Neutrality: No reaction with glazed or engobed surfaces.
- Temperature Resistance: Functions reliably in extreme heat in summer and frost in winter.
Suitable Variants for Every Roofing Project
| Variant | Cables | Available Lengths |
|---|---|---|
| 2 PV | 2 solar cables | 105 mm, 125 mm, 150 mm |
| 2 PV+PE | 2 solar + earthing | 105 mm, 125 mm, 150 mm |
| 4 PV | 4 solar cables | 105 mm, 125 mm, 150 mm |
| 4 PV+PE | 4 solar + earthing | 105 mm, 125 mm, 150 mm |
| 6 PV | 6 solar cables | 105 mm, 125 mm, 150 mm |
| 6 PV+PE | 6 solar + earthing | 105 mm, 125 mm, 150 mm |
Effortless Installation
Another advantage: NEXCAPE bushings can be installed without tools. The MC4 connector does not need to be removed. This saves time and reduces the risk of installation damage to the sensitive clay roof tiles.
Professionally Completing Clay Roof Projects
Those installing on clay roof tiles need material that remains permanently elastic and adapts. NEXCAPE's TPU roof bushings offer exactly that, Made in Germany and manufactured using 3D printing.
Find the right roof bushing now: Roof bushings for solar cables (105/125/150 mm)
